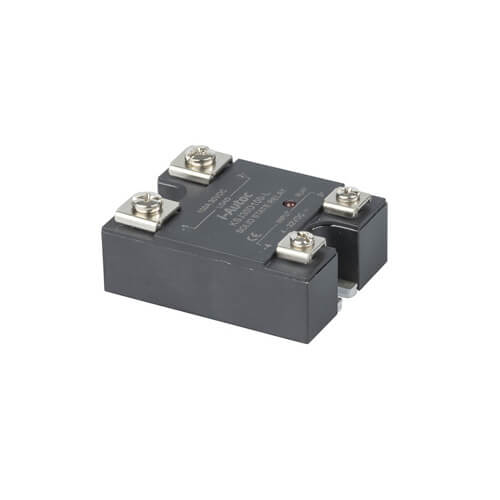

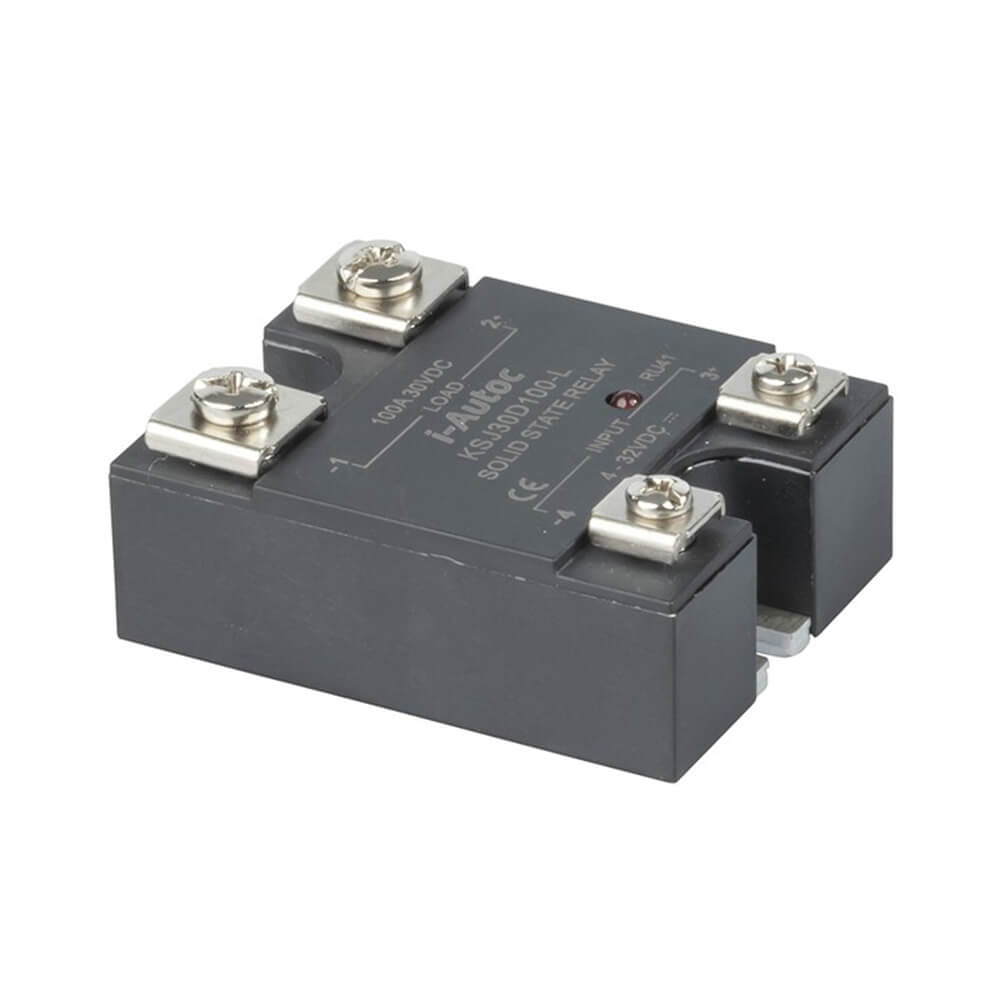

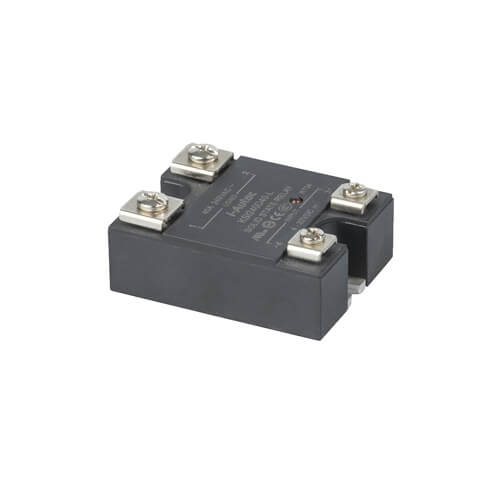

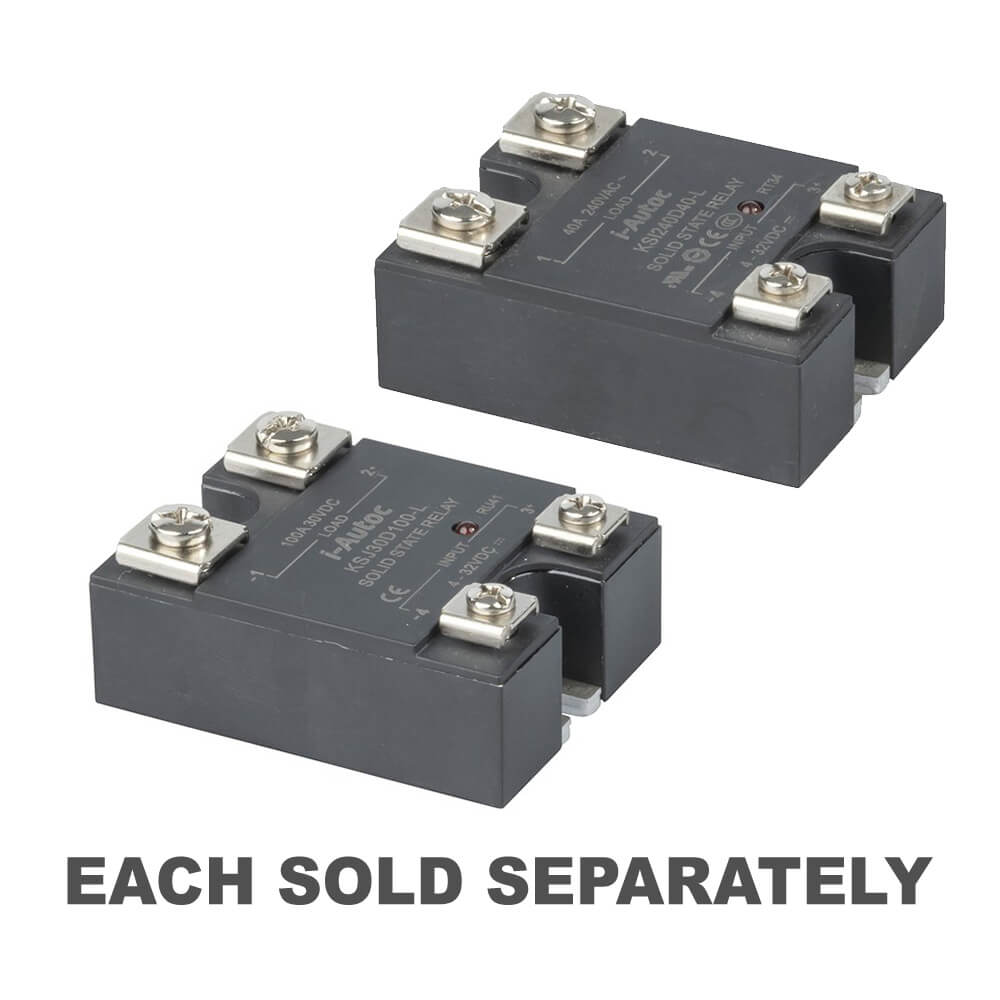

Solid State Relay 4-32VDC Input

This panel mount solid state relay offers 4 -32VDC input control, with a switched output rated at 30VDC/ 100Amps. Switching high current DC loads normally requires use of a contactor to avoid arcing as the contacts try to separate. This solid state relay uses MOSFET technology to provide an economical and reliable method of switching medium to high power DC loads. This means there is no arcing and the low on-state resistance provides a viable alternative to the bulky and expensive contactors.

Note: Inductive loads must have diode suppression (Refer data sheet wiring diagram)

Output Circuit

Load Voltage: 0-30VDC

Load Current: 0.02-100A

Max On-State Resistance: 0.007Ohms

Max On-State Voltage Drop: 0.35V

Max Turn On Time: 0.5ms

Max Turn Off Time: 0.5ms

Max Surge Current: 240A (10ms)

Input Circuit

Control Voltage: 4-32VDC

Control Current: 28mA max.

Min Turn Off Voltage: 1

Product Specifications

• DC Voltage : 3V, 32V
• DC Current Draw : 28mA
• Mounting Method : Chassis
• Attachment / Securing Method : Screw Down
• Mount Screw Quantity : 2pc
• Mount Screw Size : 2mm
• Overall Screw Spacing (H) : 47.5mm
• Device Type : Solid State Relay
• Input : DC
• Contact format : SPST
• DC Contact Voltage : 0V, 30V
• DC Switching Current (Closing) : 0.02A, 100A
• Operation Time : 0.5ms
• Release Time : 0.5ms
