Plastic Housing Photo Interrupter
Plastic Housing Photo Interrupter
Roll over image to zoom in Click on image to zoom
Plastic Housing Photo InterrupterPlastic Housing Photo Interrupter

Plastic Housing Photo Interrupter

TechBrandsSKU: 165028
BUY MORE SAVE MORE!
BUY 2 GET 2% OFF
BUY 3 GET 4% OFF
.......... ..........
BUY 6 GET 10% OFF

    • Optocoupler Type : Photo interrupter
    • Optocoupler Operating Current : 50mA
    • Reverse Voltage : 5V
    • active mount type : Through Hole
    • active connector type : Solder Legs
    • component package : radial
    • active number of legs : 4 count
    • diameter of leg : 0.38mm
    • leg distance : 2.54mm

Price:
€5,95
Stock:
In stock

Buy More Save More!

LatestBuy Sale Offers!

Description

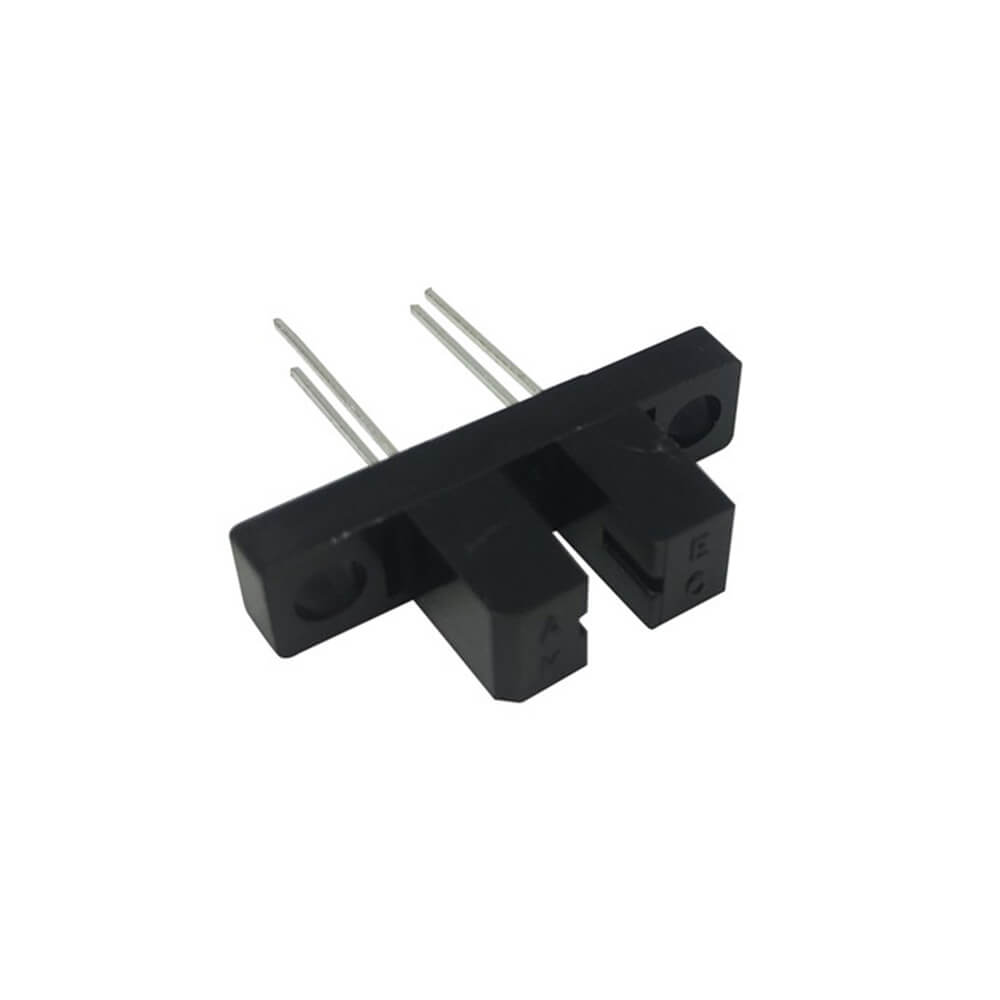

This device enables you to turn a circuit on and off optically. It consists of a moulded plastic housing with an IR LED facing a phototransistor across a gap. Any object in the gap will interrupt the IR beam and consequently switch the phototransistor on and off.The device is very fast and ideal for counting, timing or sensing.Full specs supplied with each unit.

FEATURES:

- PCB or chassis mounting

- Low cost- Rugged one piece construction

- Very fastAPPLICATION:

- Counter sensor

- Tachometer

- Opto ignition

- Edge sensor

- Tape end sensor.


Product Specifications

  • Optocoupler Type : Photo interrupter
  • Optocoupler Operating Current : 50mA
  • Reverse Voltage : 5V
  • active mount type : Through Hole
  • active connector type : Solder Legs
  • component package : radial
  • active number of legs : 4 count
  • diameter of leg : 0.38mm
  • leg distance : 2.54mm
Length : 6 cm Width : 7 cm
Height : 1 cm
