Duinotech Thin Film Pressure Sensor
Duinotech Thin Film Pressure Sensor
Roll over image to zoom in Click on image to zoom
Duinotech Thin Film Pressure SensorDuinotech Thin Film Pressure Sensor

Duinotech Thin Film Pressure Sensor

DuinotechSKU: 96544

    • Flexible nano sensor
    • Waterproof
    • Pressure sensitive
    • Range: 0-10kg*
    • Thickness: <0.25mm
    • Response Point: <20g
    • Repeatability: <5.8% (50? Load)
    • Accuracy: 2.5% (85% range interval)
    • Durability: >100,000 Times
    • Response Time: <1ms
    • Recovery Time: <15ms
    • * Capable of measuring gross weight up to 10kg, but most accurate results are obtained up to 0.5kg.

Price:
€12,99
Stock:
In stock

Buy More Save More!

LatestBuy Sale Offers!

Description

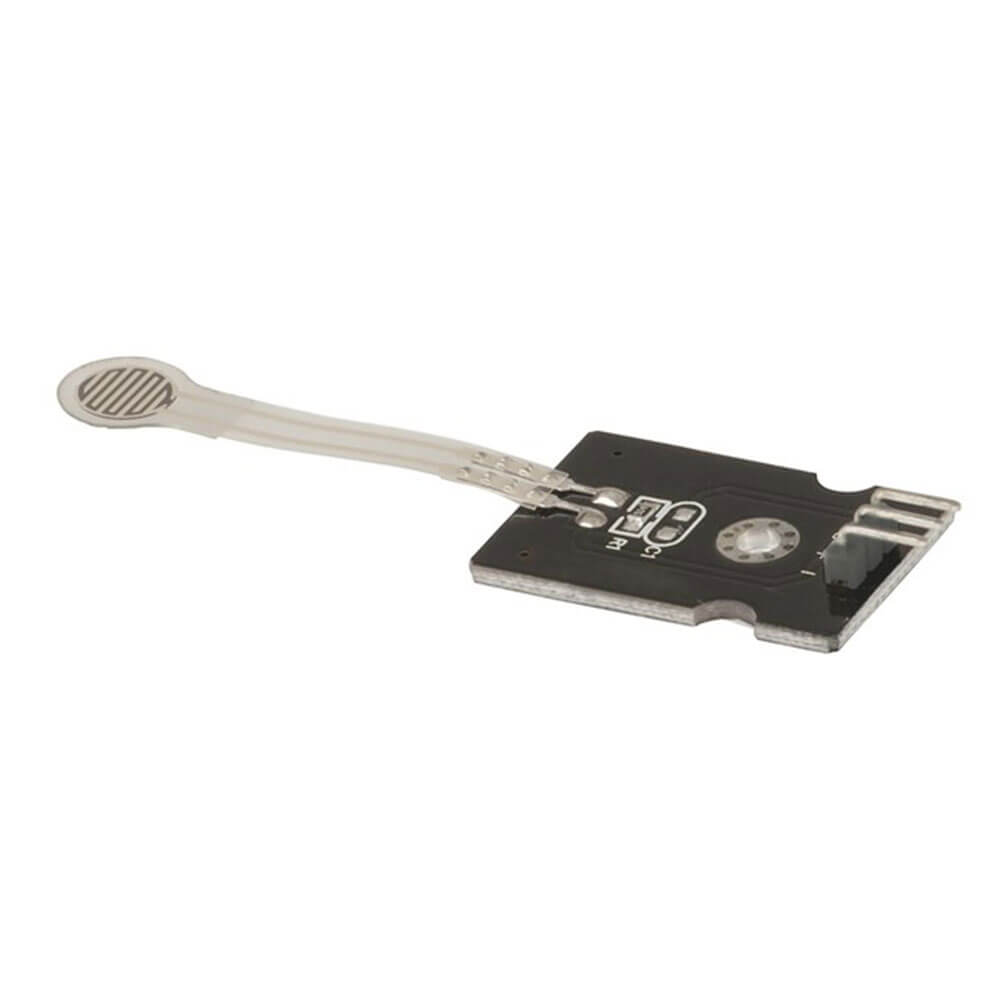

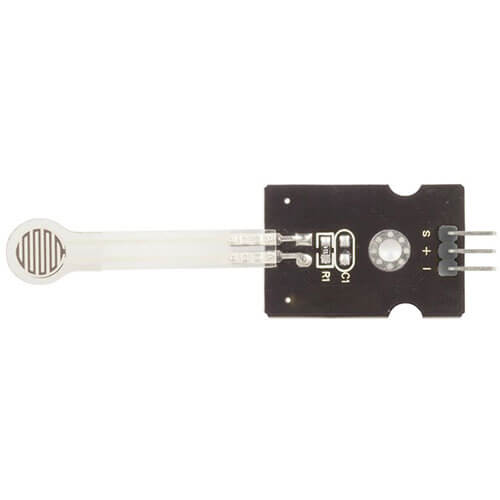

A highly sensitive waterproof sensor to detect pressure. The 5mm round thin sensor is mounted at the end of a 40mm long flexible lead that connects to the main board. Pressure up to 10kg on the sensor sends the change in resistance to your favourite microcontroller. Powered from either 3.3V or 5V.


Product Specifications

  • Flexible nano sensor
  • Waterproof
  • Pressure sensitive
  • Range: 0-10kg*
  • Thickness: <0.25mm
  • Response Point: <20g
  • Repeatability: <5.8% (50? Load)
  • Accuracy: 2.5% (85% range interval)
  • Durability: >100,000 Times
  • Response Time: <1ms
  • Recovery Time: <15ms
  • * Capable of measuring gross weight up to 10kg, but most accurate results are obtained up to 0.5kg.
